Product Description

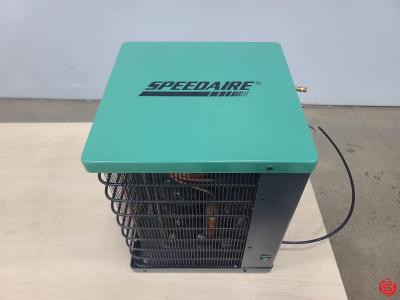

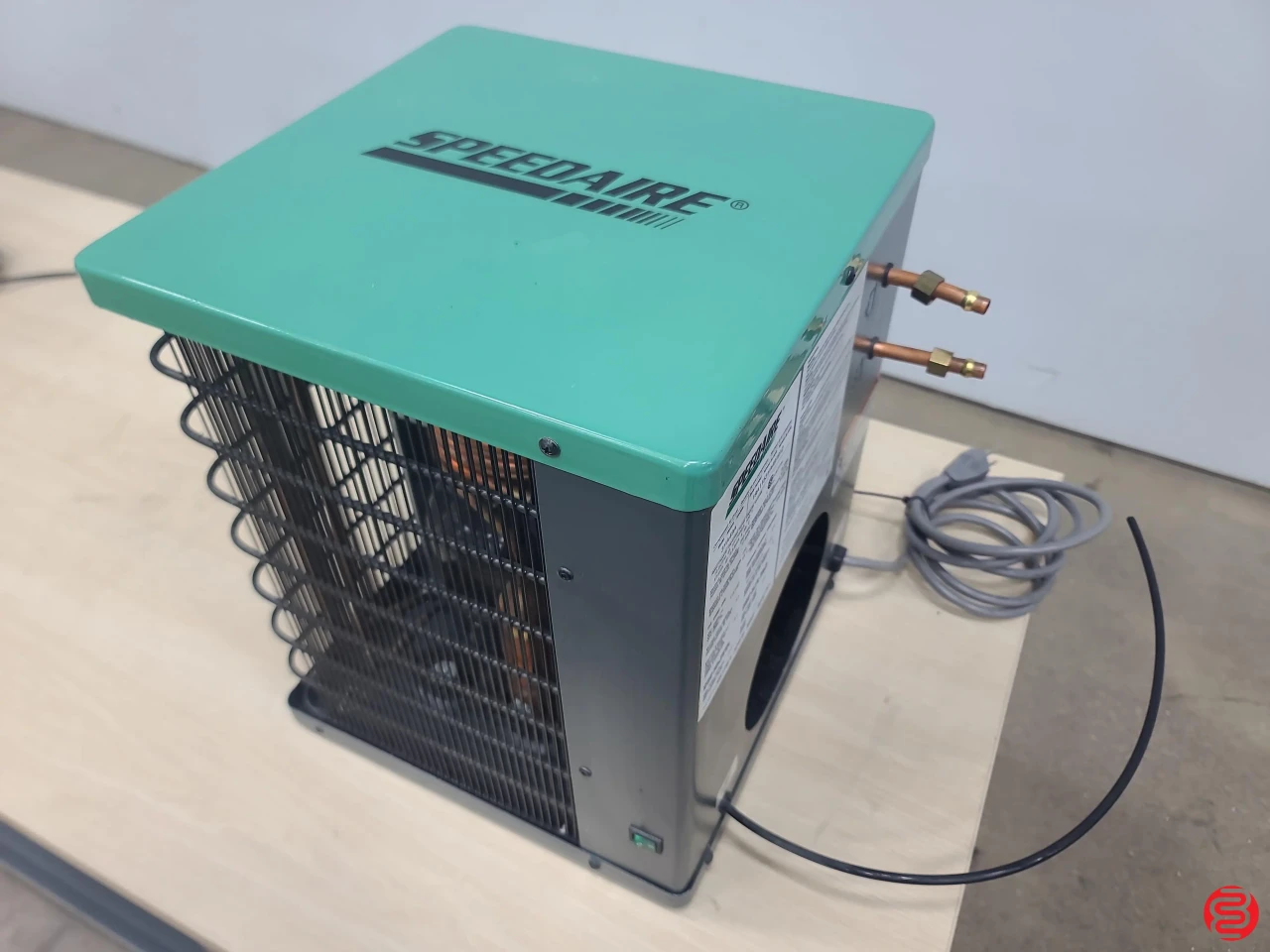

Speedaire Refrigerated Compressed Air Dryer 3YA49
Features
- Non-cycling refrigerated dryer for continuous operation
- 10 CFM capacity at 100 PSI
- 46°F pressure dew point for reliable moisture removal
- Integral moisture separator for improved air quality
- Automatic float-style pneumatic condensate drain (no air loss)
- Copper heat exchanger for efficient thermal transfer
- Compact, space-saving footprint
- Powder-coated steel enclosure for durability
- Illuminated on/off switch and power indicator
- Pre-wired with 6 ft. 115V power cord
Applications
- Air compressors and pneumatic systems
- Print and bindery equipment
- Packaging and automation lines
- General shop air drying and moisture control

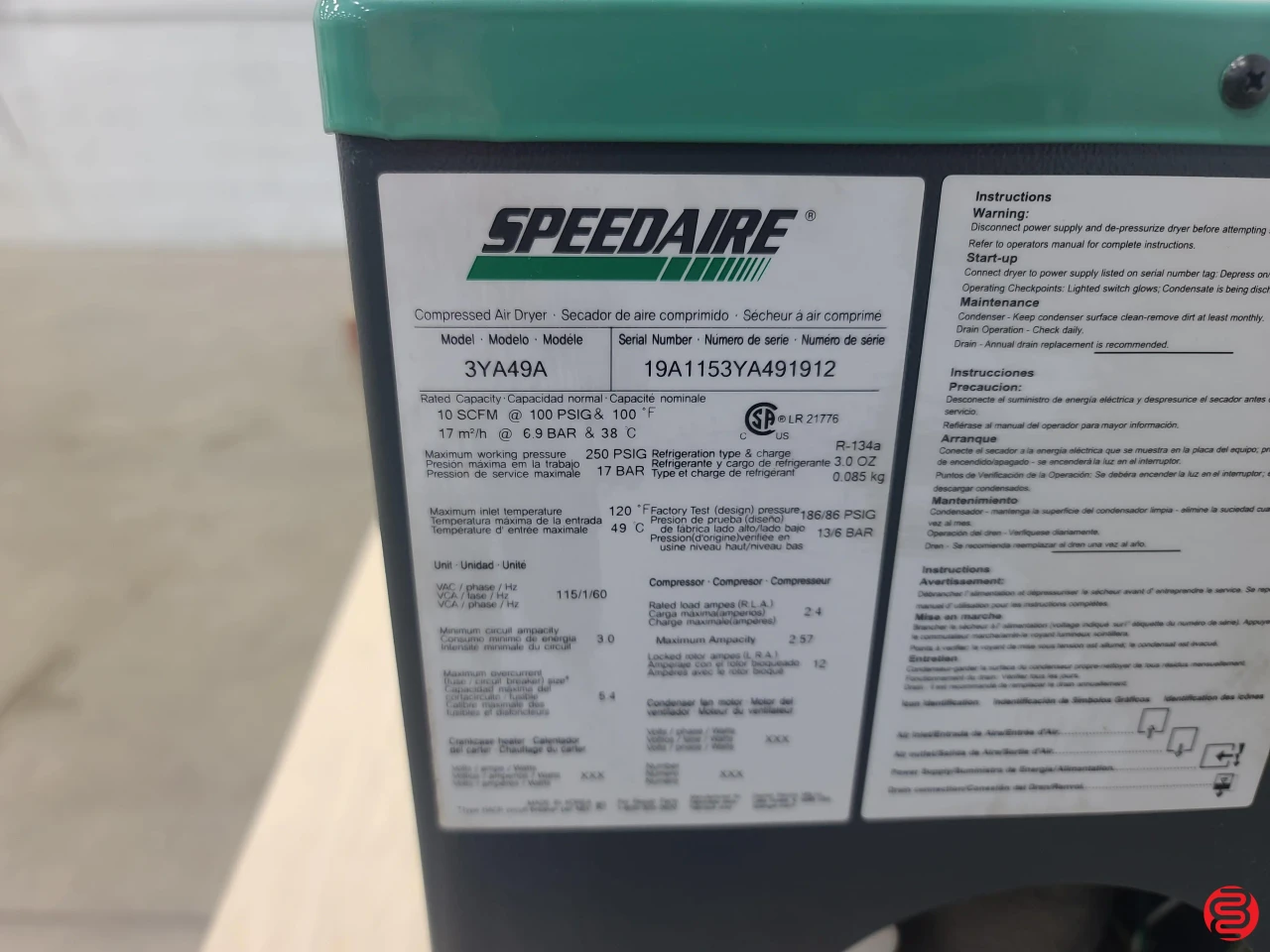

Specifications
- Capacity: 10 CFM
- Maximum compressor size: 3 HP
- Maximum pressure: 250 PSI
- Dew point: 46°F
- Refrigerant: R-134A
- Refrigeration compressor: 1/8 HP
- Power: 115V AC, Single Phase
- Full load amps: 2.52A
- Frequency: 60 Hz
- Power consumption: 0.20 kW
- Connection size: 3/8″ O.D. (inlet & outlet)
- Maximum inlet temperature: 120°F
- Maximum ambient temperature: 110°F
- ISO Class: 6
