Product Description

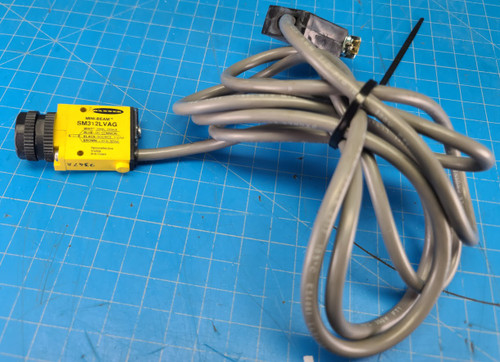

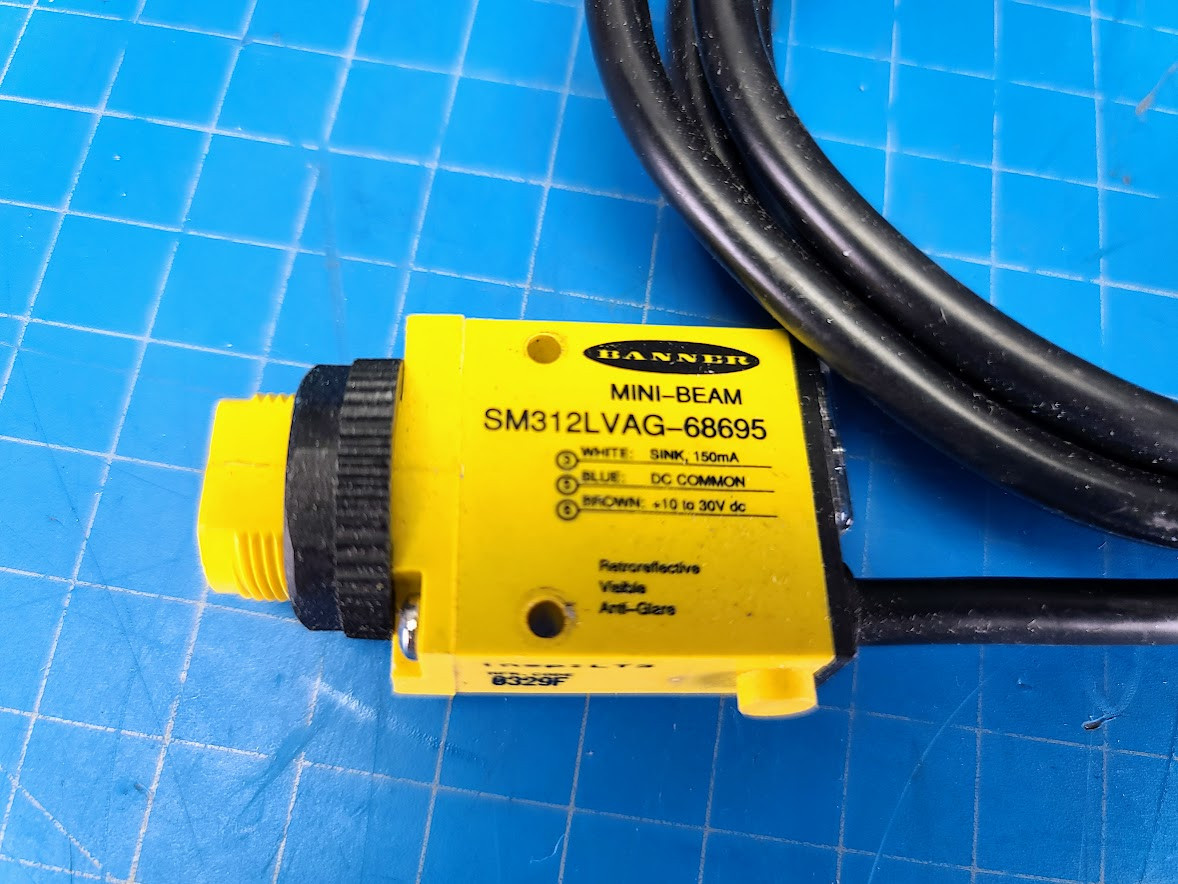

Banner Visible Red 2000mm Photoelectric Sensor SM312LVAG-68695
IP Rating IP67
Sensing Beam Visible Red LED
Cable Length (m) 1.8
Power DC
Sensing Mode (General) Retroreflective
Sensing Mode (Detailed) Polarized
Housing Style Rectangular w/M18 Mount
Primary Housing Material Thermoplastic
Input Output Discrete
Max Sensing Distance (mm) 2000
Outputs Bipolar (NPN & PNP)
Power Supply/Supply Voltage 10-30 V dc
Connection Pigtail QD
Quick Disconnect Type DB9
Min Op. Temp. (°C)-20
Operation Light/Dark Operate
Max Op. Temp. (°C)70
Output response time (ms) 1
Sensing Beam Wavelength 650
Delay at Power-up (ms) 100
Repeatability (µs)300
Number of Pins4
NEMA Rating NEMA 1, 2, 3, 3S, 4, 4X, 6, 12
Max Op. Relative Humidity [%]90% @ 50°C
Lens Material Acrylic
Adjustments Potentiometer
Barrel Diameter (mm)18
Indicato rLEDs
Feature: Encapsulated Yes
Feature: Audible No
