Product Description

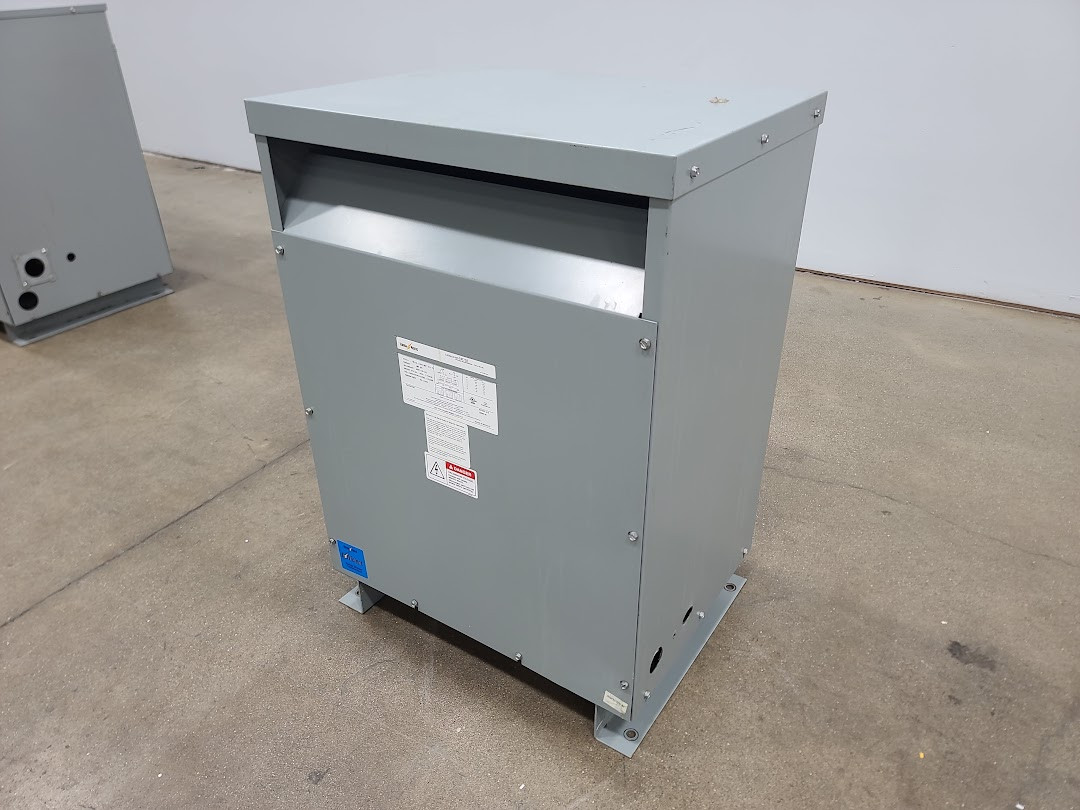

Federal Pacific 75kVA 480 D x 208Y / 120V Transformer T4T75E
| Product Details | |||
|---|---|---|---|
| Catalog #: | T4T75E | ||
| KVA: | 75 | Phase: | Three |
| Line Voltage: | 480 | Load Voltage: | 208Y/120 |
| Temp Rise: | 150 | Hertz: | 60 |
| Taps: | +2, -4 x 2.5% | Conductor: | Aluminum |
| Insulation System: | 220° | Ventilated: | Yes |
| TP1: | Yes | K Factor: | |
| Type: | FH | Lighting Tap: | No |
| Weather Shield: | WS-18A | Wall Mount Bracket: | WMB-4 |
| Weight and Dimensions | |||
|---|---|---|---|
| Height: | 37" | Width: | 26" |
| Depth: | 19.875" | ||
