Product Description

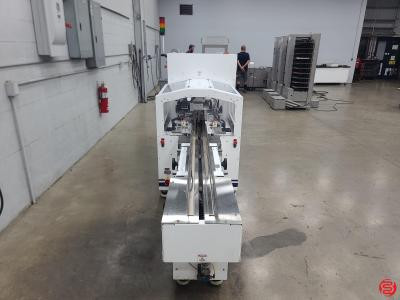

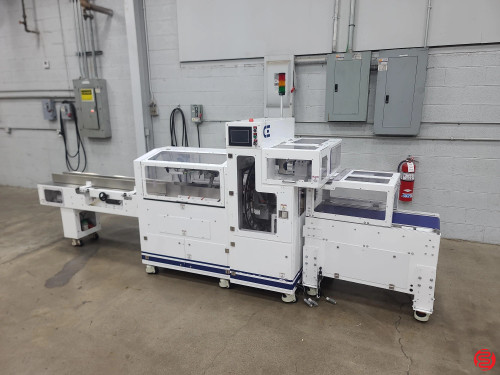

2020 Madison Banders CE Systems OS2 APT-RC Automated Banding System w/ Lugged Infeed Conveyor – 092425855001B
Contact Us to Make Shipping Arrangements

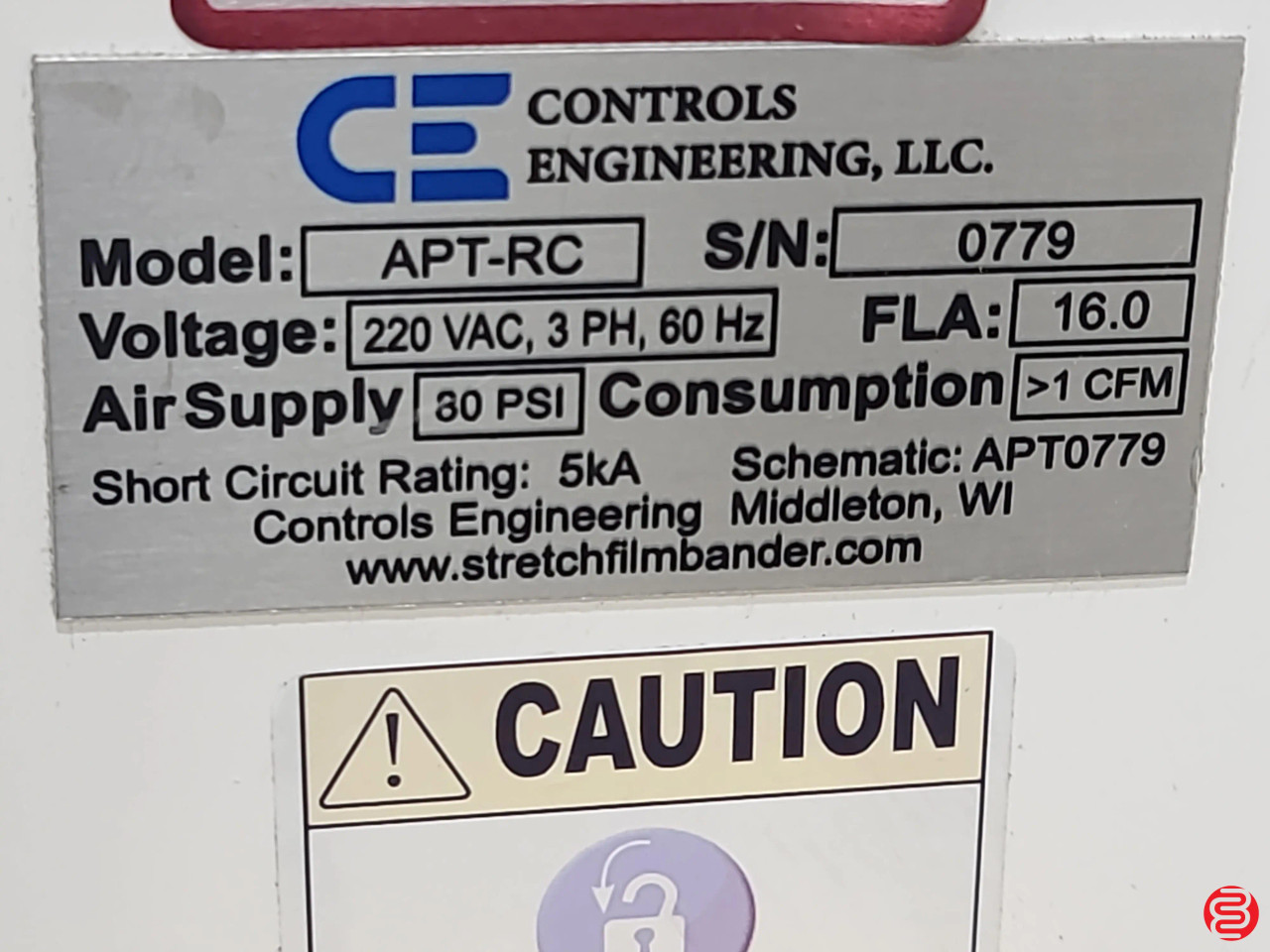

S/N: 0779
Controls Engineering, a proven leader in quality banding equipment design and manufacturing, is proud to bring the OS Series to your packaging workflow.
Efficiency
This system is designed for maximum efficiency, providing automated banding for:
- Batching and sequentially numbered products
- Pre-Stacked or collected product
- Manual or automated loading
The efficiency you realize can cut labor hours significantly over your run times.
Flexibility
The OS-1 & OS2 lines automatically convey product in and out using either a single or dual overhead shuttle system.

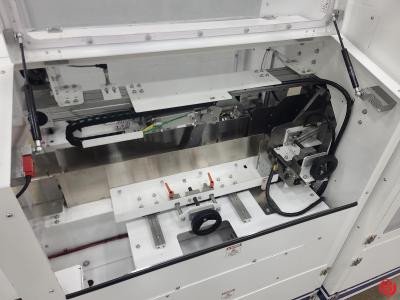

The OS2 infeed shuttle tranfers the product into the banding position and headstop. The infeed shuttle lifts and retracts for the incoming bundle. After the banding cycle, the headstop moves to eject the banded bundle.
Performance
Our high-performance stretch film brings a quality solution to your packaging, is completely recyclable, and is easy to use. Count on Controls Engineering to bring you the highest bundle integrity at the lowest per bundle cost.
Specifications:
- Bundle width 3″– 12″*
- Bundle length 4”– 11”
- Bundle height 0.5″– 7″*
- Electrical 220 VAC, 3 phase, 15 Amp
- Compressed air 80 – 120 psi, 3 cfm max
- Machine dimensions See diagram below
- Machine weight 1200 lb approx.
- Film / Tape 35 mm – 72mm wide
