Product Description

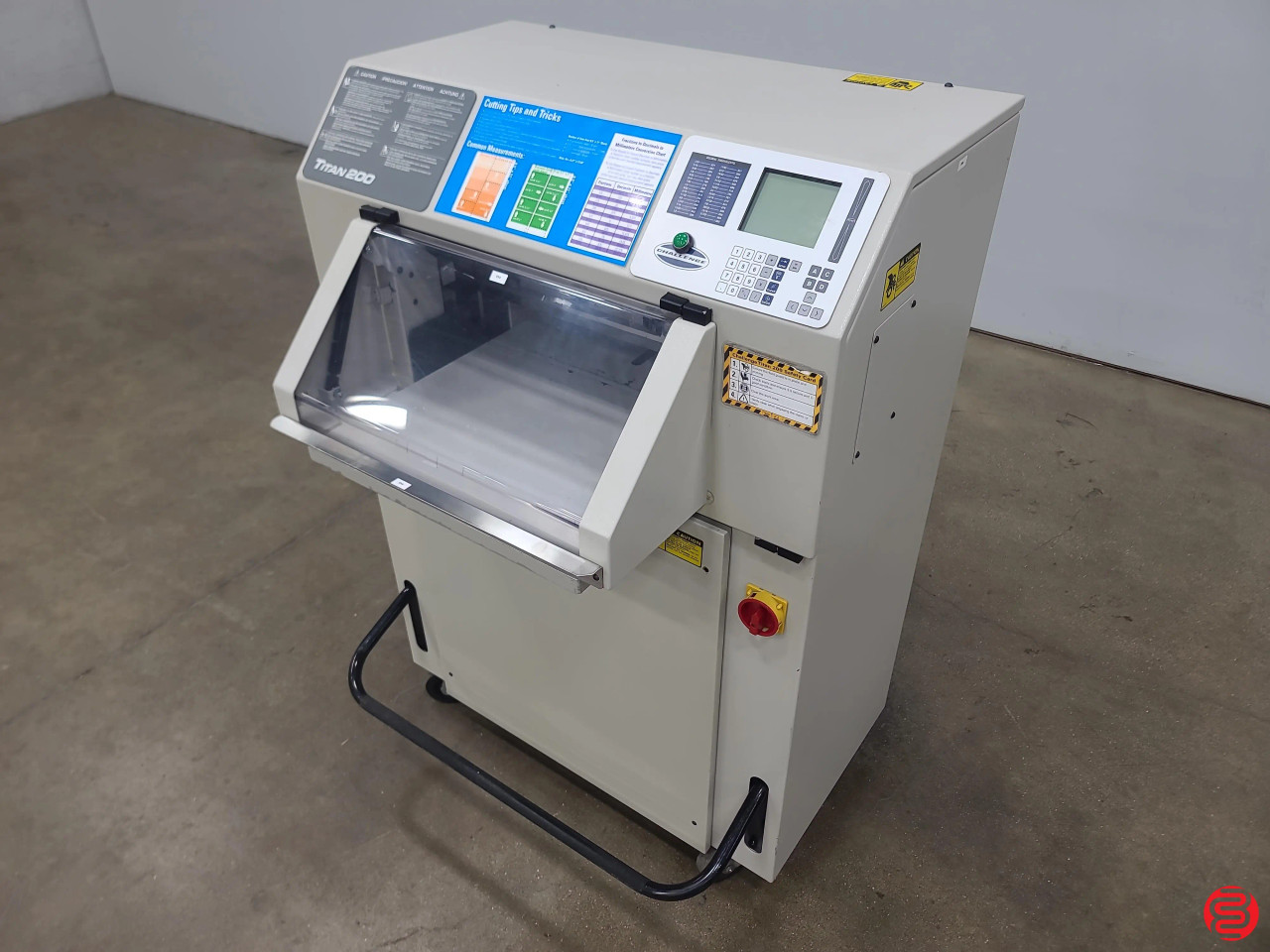

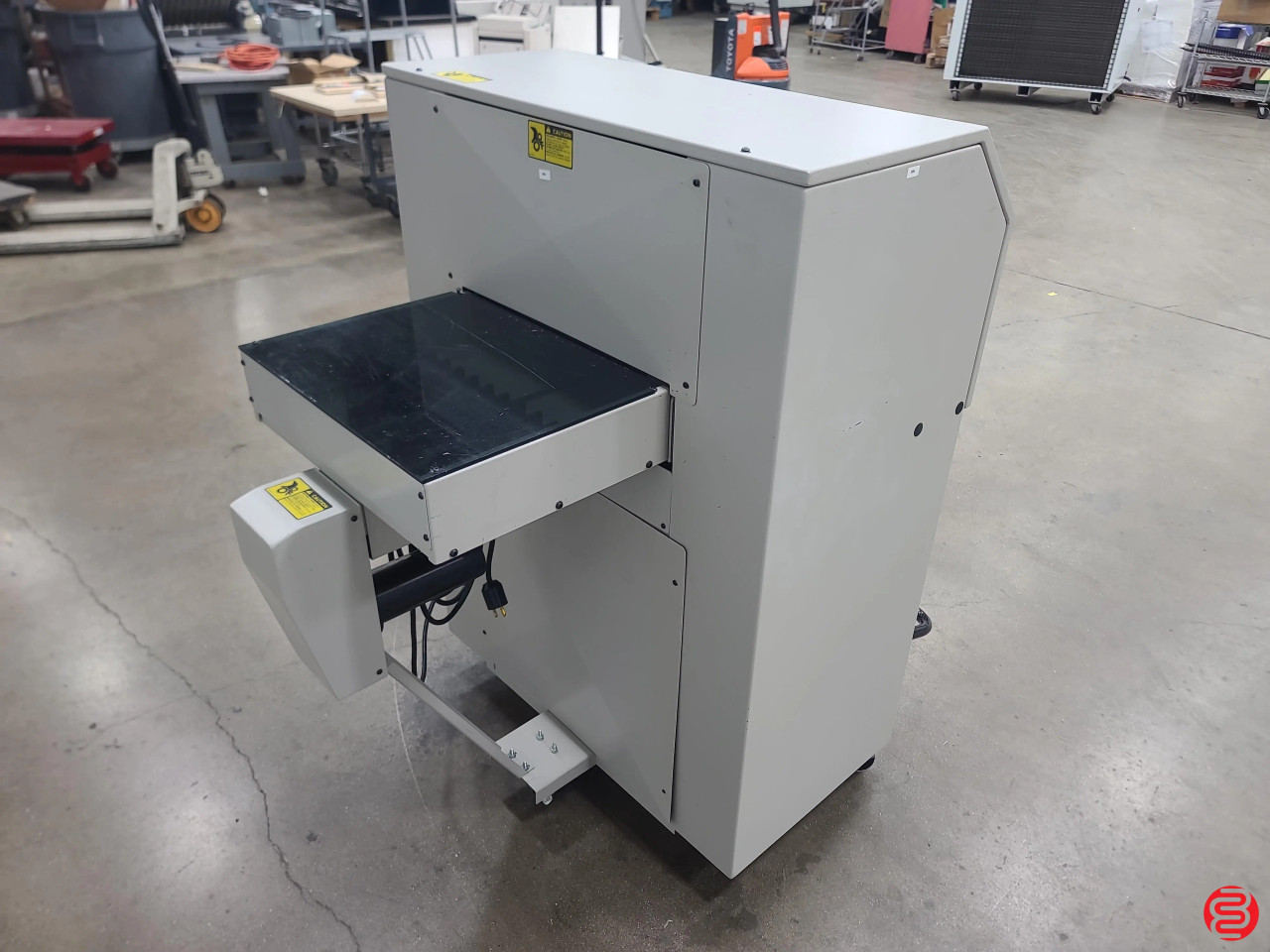

2018 Challenge Titan 200 20in Programmable Paper Cutter w/ Safety Shield
S/N: 981192R
The Challenge Titan 200 is a 20-inch programmable paper cutter designed for precision trimming in commercial print shops, binderies, and in-plant finishing environments. It is built for consistent, high-accuracy cutting of paper stacks and printed materials in medium to high-volume production settings.
This unit features a fully programmable back gauge system with hydraulic clamping and cutting operation. The cutter is equipped with a digital control interface for repeatable job setups, along with a hydraulic drive system designed to deliver consistent cutting force across a range of stock types and lift heights.
Features
- 20″ cutting width for standard commercial print sizes
- Hydraulic clamping and cutting system
- Programmable back gauge with digital control interface
- Light beam safety system with front safety shield
- Dual-hand cut activation for operator safety
Typical Applications
- Commercial print finishing
- Paper and cardstock trimming
- Booklet and brochure finishing
- Bindery operations
Technical Specifications
- Model: Titan 200
- Cutting width: 20″
- Maximum cutting height: 3-1/4″
- Minimum cut: 1/2″
- Table depth in front of knife: 16″
- Table depth behind knife: 20″
- Clamp force: 1,250 – 2,500 lbs
- Electrical: 208–230V, Single Phase, 50/60 Hz, 12 Amps
