Product Description

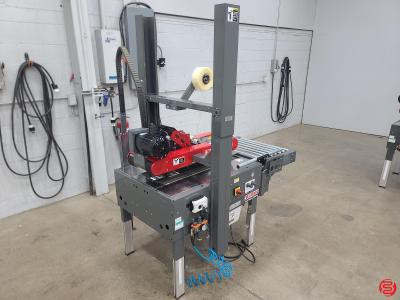

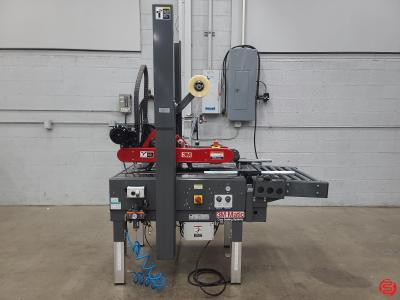

2018 3M-Matic 7000r3 Pro Random Case Sealer – 121525929003A
Contact us for shipping arrangements
S/N: 32025
The 3M-Matic™ 7000R-3 Pro Random Case Sealer with 3″ 3M™ AccuGlide™ 3 Taping Head is an automatic carton sealing system designed to handle random-size boxes without manual changeover. This machine automatically adjusts for case height and width, allowing efficient processing of mixed cartons at speeds of up to 24 cases per minute using 2″ or 3″ tape. Photo-eye detection quickly responds to varying box widths, while electro-mechanical height adjustment ensures precise and consistent sealing. The top and bottom belt drive system keeps cartons aligned through the sealing process, reducing skewing and tipping, even on tall or lightweight boxes. Equipped with a low-impact AccuGlide™ 3 taping head, the system protects cartons while delivering secure seals. Built for demanding production environments, the 7000R-3 Pro is well suited for manufacturing, distribution, and packaging operations.
Features
- Automatic random-size carton sealing system
- Adjusts automatically for case height and width
- Processes up to 24 cases per minute
- Uses 2″ or 3″ pressure-sensitive tape

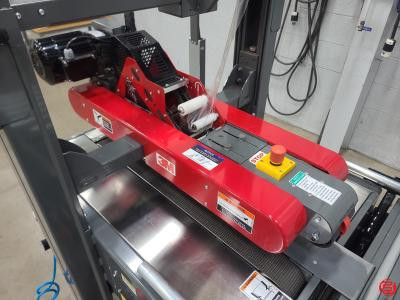

- 3M™ AccuGlide™ 3 low-impact taping head
- Top and bottom belt drive for positive carton control
- Photo-eye width detection and electro-mechanical height adjustment
- Auxiliary offset taping head position for shorter cartons
- Dual mast design with centrally located emergency stop
Specifications:
- Machine Type: Random Sized Boxes
- Drive System: Top and Bottom Belt
- Operating Rate: Up to 24 case per minute
- Drive Belt Speed: Up to 100 feet per minute
- Frame Material: Epoxy Powder Coated Steel
- Maximum Box Height: 36″
- Maximum Box Weight: 85 lbs.
- Maximum Box Width: 26″
- Minimum Box Height: 1.5″
- Minimum Box Length: 6″
- Minimum Box Width: 6.5″
- Operation: Operator folds flaps
- Tape Width: 2″ (48 mm) or 3″ (72 mm)
- Electric: 120V, 60Hz, 1Ph, 750W, 6.25A
- Air Supply: 64 psi-85 psi
- Air Consumption: 5.1 SCFM
